Headwalls

Headwalls

The range of Advanciv precast concrete headwalls offers a number of benefits over traditional cast-in-situ options in the form of:

  • no need to mix concrete on-site
  • installation times reduced
  • labour time reduced
  • concrete is at strength upon delivery

This approach ensures that you can keep working on the same day the headwall is installed, with no need to wait for the concrete to cure.

Compatibility

The range of standard headwalls suits:

  • concrete
  • steel
  • poly pipe

Our knock-out design features allow for one headwall to accommodate 4 different pipe sizes with diameters throughout our range spanning from 225mm to 2100mm. All sizes conform to the relevant industry standards.

The range also caters for:

  • multi-cell headwalls
  • box culvert profile
  • heavy duty offerings

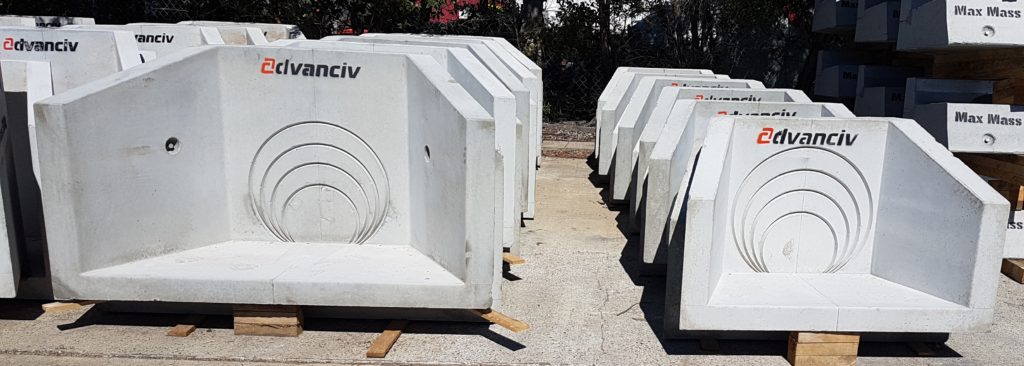

AHPS225-450-1 Headwall

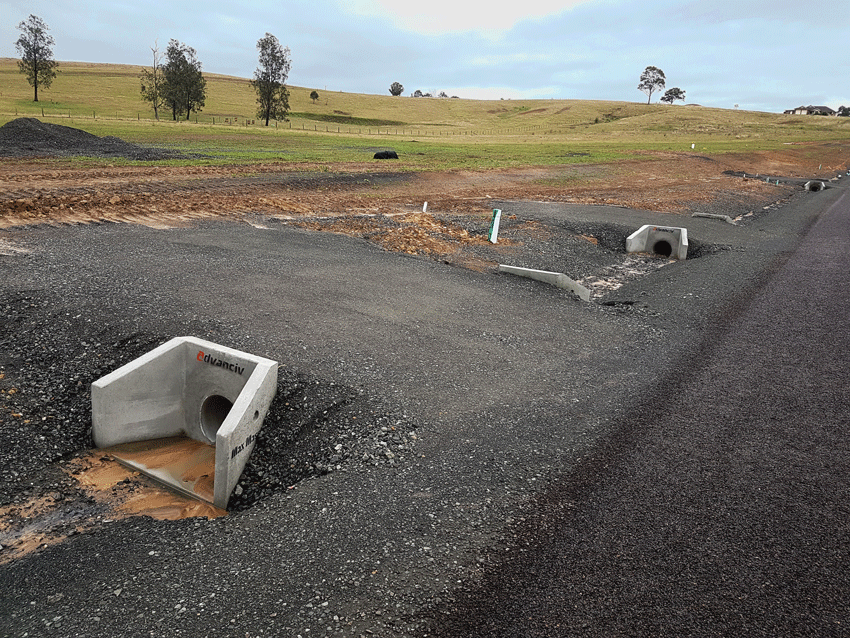

AHPS225-450-1 Subdivision

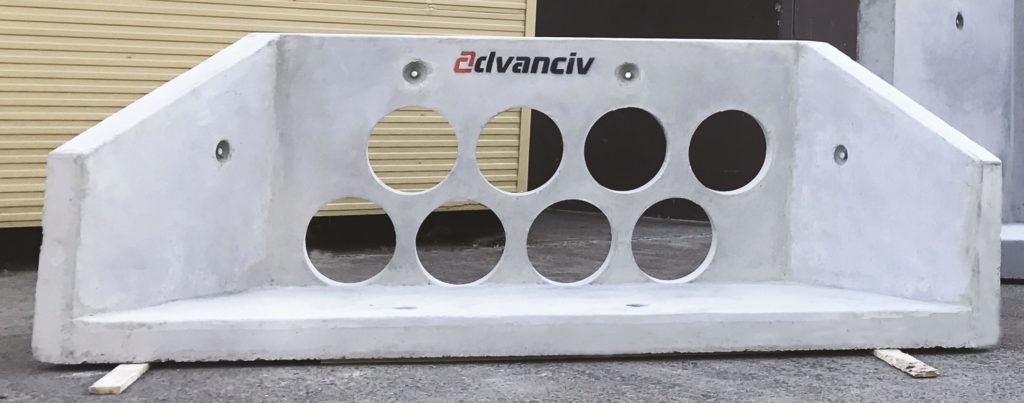

Custom 8 Cell Headwall
Product Code Suits Pipe Dim. Quote Request
AHPS225-450-1
  • 225mm
  • 300mm
  • 375mm
  • 450mm
Add to Cart
AHPX225-450-1
  • 225mm
  • 300mm
  • 375mm
  • 450mm
Add to Cart
AHPX525-675-1
  • 525mm
  • 600mm
  • 675mm
Add to Cart
AHPX750-900-1
  • 750mm
  • 825mm
  • 900mm
Request a Quote
AHPX1050-1 1050mm Request a Quote
AHPX1200-1 1200mm Request a Quote
AHPX1350-1 1350mm Request a Quote
AHPX1500-1 1500mm Request a Quote
AHPX1800-1 1800mm Request a Quote
AHPX2100-1 2100mm Request a Quote
  • All units are fitted with foot anchors for safe handling
  • Full apron design
  • One headwall can accommodate 4 different pipe sizes with a knock-out design
  • Irrigation
  • Pipe drainage
  • Box culvert inlet and outlet
  • Local government works
  • Roads and Maritime Services (RMS)

Material: Concrete

Fixings Required: N/A

Compliance Standard: AS 3600-2009

Contact Advanciv or your Sales Representative for a technical sheet
