Kerb Entry

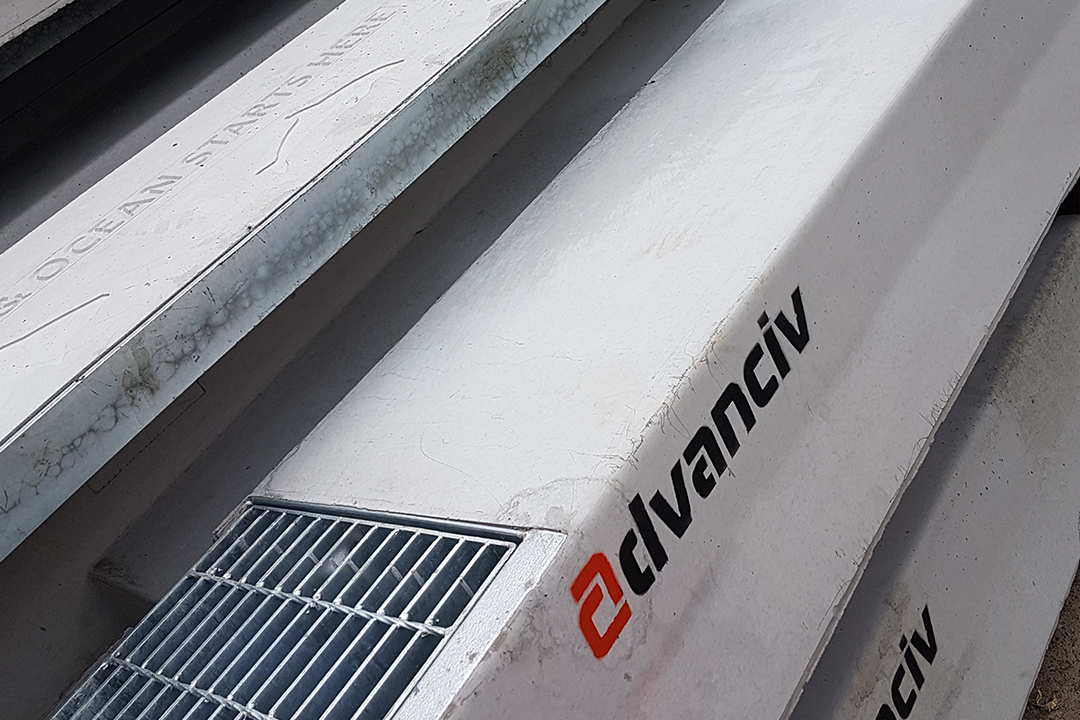

Advanciv’s range of kerb entry solutions available in left, right and sag (centre) have been designed from the feedback provided by the market.
Features
Key features of our unit include:
- An integral cast in benching which provides a cost and time saving solution by reducing the amount of additional works required to complete the installation. It provides a smooth off form finish.

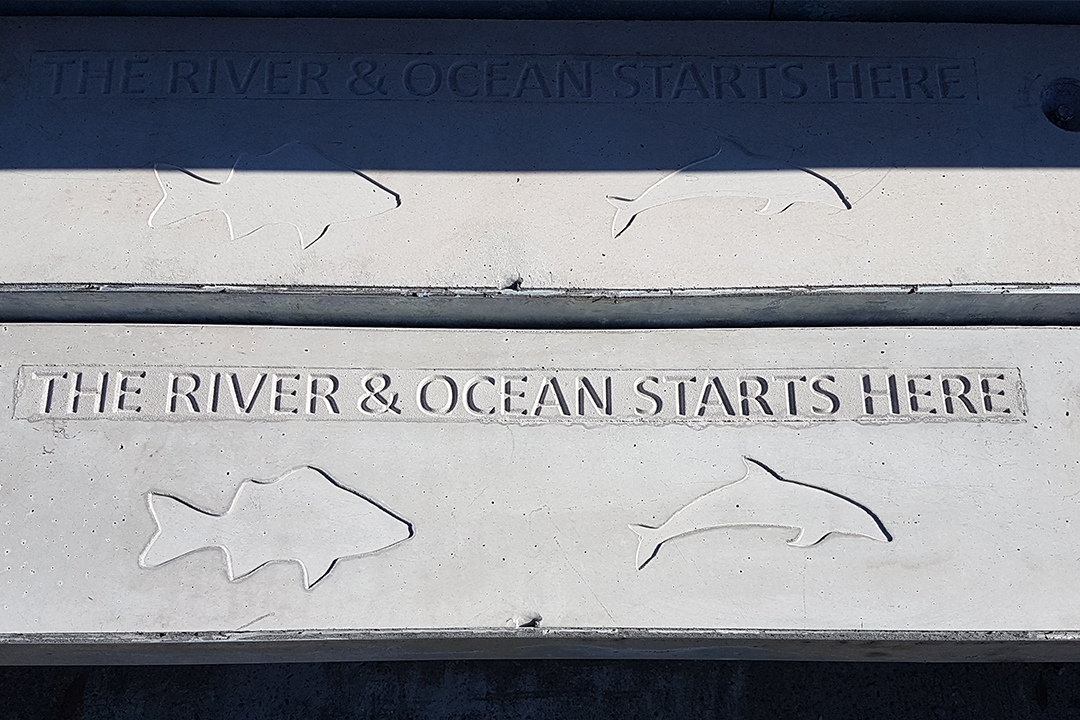

- An environmental message cast into the top of every product.
- “The River & Ocean Starts Here”
- Suitable for both coastal and regional locations.
- An Australian bass and bottlenose dolphin profile accompany the environmental slogan.
- The same message is provided on our kerb lintel products.
- Our 2.4 metre offering is light enough (even with the benching) to be manoeuvred into position without the need for a crane.
- Available with light duty (Class B) and heavy duty (Class D) hinged grates which are positioned in left, right and sag (centre) configurations and meet most council requirements.


To request a quote, view our online quote request catalogue or click ‘Add to Cart’ below. Alternatively, contact us on (02) 4964 9998.
Product Offering
Product Code | Inlet Opening | Grate Location | Grate Class | Quote Request |
---|---|---|---|---|
AKO12B65 | 1200mm | Centre | Class B | Add to Cart |
AKO12D65 | 1200mm | Centre | Class D | Add to Cart |
AKO18B65L | 1800mm | Left Hand | Class B | Add to Cart |
AKO18B65C | 1800mm | Centre | Class B | Add to Cart |
AKO18B65R | 1800mm | Right Hand | Class B | Add to Cart |
AKO18D65L | 1800mm | Left Hand | Class D | Add to Cart |
AKO18D65C | 1800mm | Centre | Class D | Add to Cart |
AKO18D65R | 1800mm | Right Hand | Class D | Add to Cart |
AKO24B65L | 2400mm | Left Hand | Class B | Add to Cart |
AKO24B65C | 2400mm | Centre | Class B | Add to Cart |
AKO24B65R | 2400mm | Right Hand | Class B | Add to Cart |
AKO24D65L | 2400mm | Left Hand | Class D | Add to Cart |
AKO24D65C | 2400mm | Centre | Class D | Add to Cart |
AKO24D65R | 2400mm | Right Hand | Class D | Add to Cart |
AKO30B65L | 3000mm | Left Hand | Class B | Add to Cart |
AKO30B65C | 3000mm | Centre | Class B | Add to Cart |
AKO30B65R | 3000mm | Right Hand | Class B | Add to Cart |
AKO30D65L | 3000mm | Left Hand | Class D | Add to Cart |
AKO30D65C | 3000mm | Centre | Class D | Add to Cart |
AKO30D65R | 3000mm | Right Hand | Class D | Add to Cart |
Key Features
- Integral casted trough
- Environmental message
- Light duty (Class B) and heavy duty (Class D) grates available that conform to AS3996-2006
- All units are fitted with foot anchors (4 x 1.3T) for safe handling
- Mass optimised
- Full length galvanised arch bar
Application
- Stormwater pits
- Subdivisions
- Civil infrastructure projects
- Car parks
Specification
Material: Concrete
Fixings Required: N/A
Compliance Standard: AS 3600-2009
Contact Advanciv or your Sales Representative for a specification sheet
